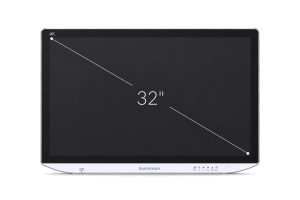

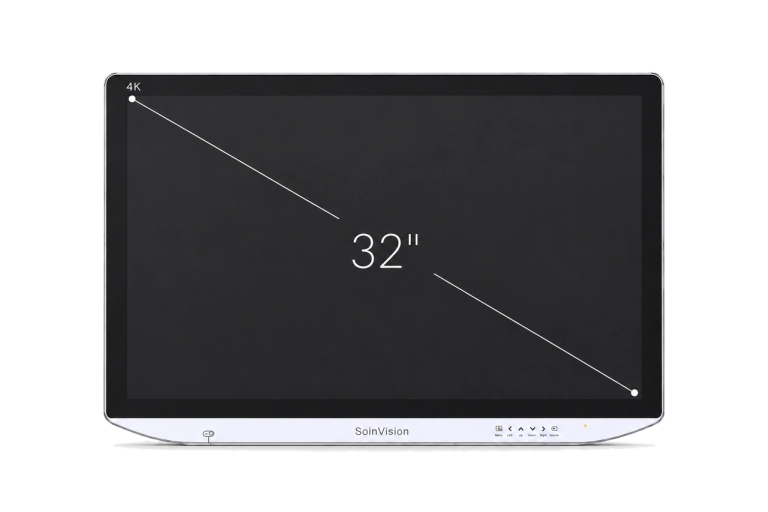

SOIN NEXARA 32-Inch 4K Medical Monitor
Built around the SOIN U320 family, NEXARA 32 is the standard 32-inch configuration in SOINVISION’s 4K medical display range. U320SE and U320Pro provide two system-integration options for projects that require a larger primary viewing surface and a signal path matched to the connected equipment.
Across both configurations, the platform combines 3840 × 2160 visualization, NEXARA image controls and flexible installation options, positioning the 32-inch format between the compact U270 family and the large-format U430 family.
4K UHD
PIP / PBP
12G-SDI
IP65 Front
WHY 32-INCH?
A Balanced 32-Inch Format for Primary Medical Visualization
Choosing the 32-inch NEXARA is about matching screen scale to the overall medical video system. For installations that need more primary image area than a 27-inch display without moving to the footprint of a 43-inch model, the U320 family provides the middle-size option in the standard NEXARA range.
01
More Viewing Area for Main-Display Workflows
A 32-inch screen provides additional image area compared with the 27-inch model, making it a practical choice when the display serves as the primary visualization point within a medical video system.
Well suited for standard endoscopy rooms, shared surgical teams, and balanced main-display viewing positions.
02
Flexible for Cart or Wall Integration
NEXARA 32 supports both cart-oriented and wall-oriented installation, allowing the U320 platform to be integrated according to room layout, equipment configuration and viewing requirements.

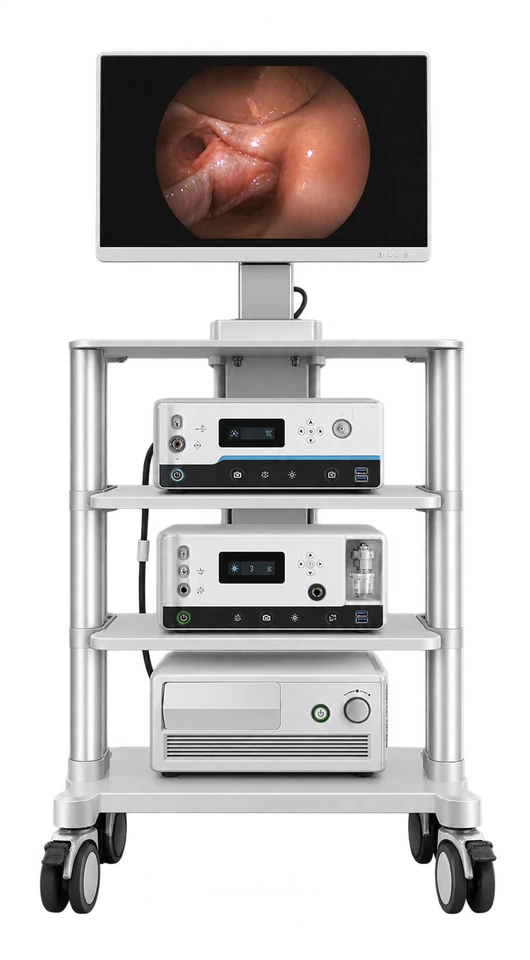

Endoscopy Cart

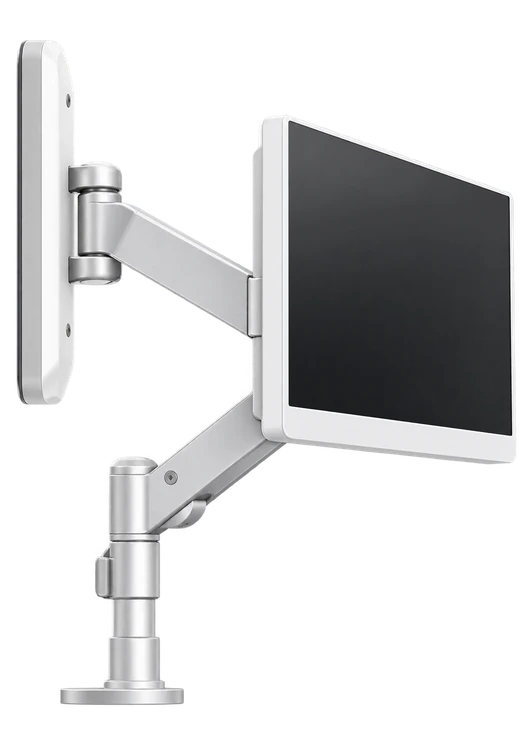

Wall / Boom Mount
12.5 kg
Installation Weight
100 × 100 / 100 × 200 mm
VESA
EXPLORE OTHER NEXARA SIZES
27-Inch — Compact Installation
Choose NEXARA 27 when a smaller format is preferred for closer viewing positions and more space-conscious system layouts.
43-Inch — Large-Format Visualization
Choose NEXARA 43 when the project requires a larger fixed display surface for more distant or shared viewing.
Core 4K Visualization & Source Control
Within the standard NEXARA series, the 32-inch models are organized under the SOIN U320 family. NEXARA 32 combines a native 3840 × 2160 4K medical display platform with source handling, medical imaging modes, color management, multi-view and orientation controls for medical video integration.
The 32-inch format is positioned for balanced primary viewing, providing more screen area than NEXARA 27 while remaining practical for both cart- and wall-based system integration.

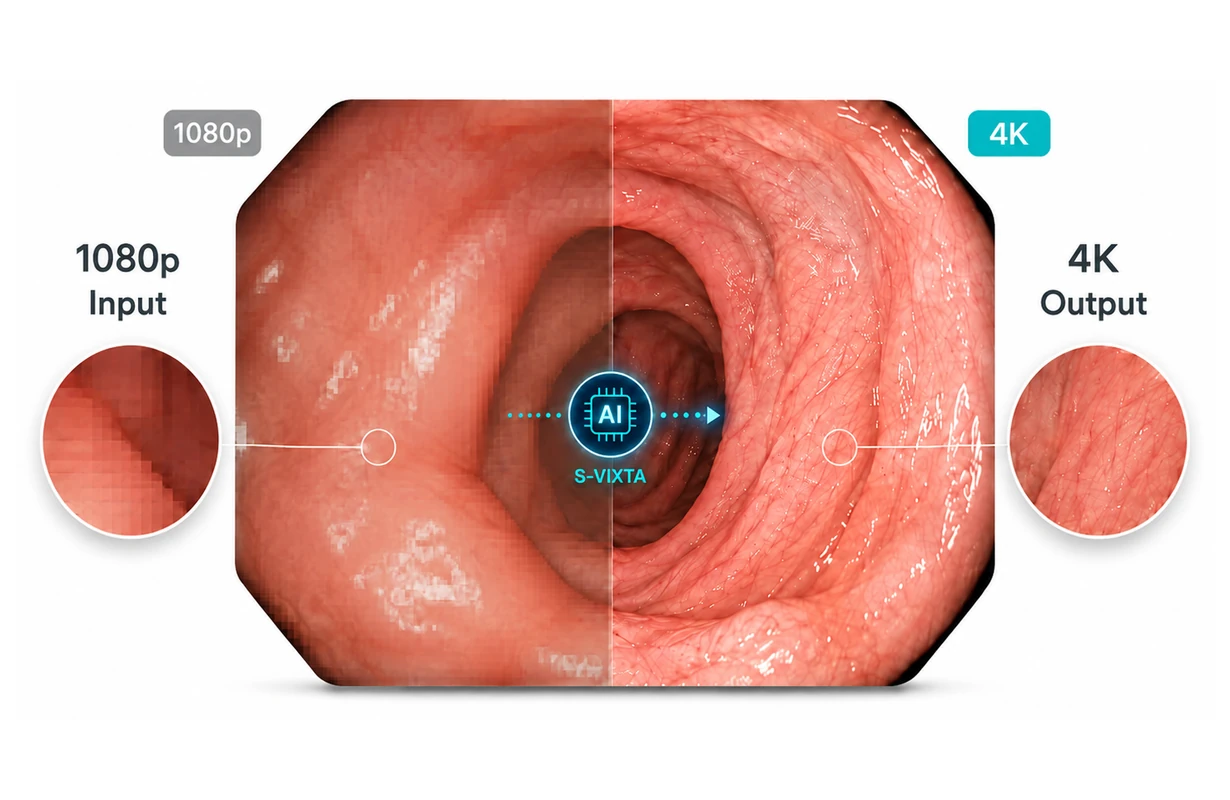

1080p to 4K Enhancement
NEXARA 32 accepts compatible native 4K signals as well as 1080p / Full HD video inputs on its 3840 × 2160 panel.
When a Full HD source is used, NEXARA’s shared 1080p-to-4K enhancement scales the incoming image for the 4K panel. This supports medical video systems that combine existing Full HD equipment with newer 4K sources, so source upgrades can occur without moving the entire video chain to native 4K at once.
The enhancement improves Full HD presentation on the 4K panel, but it does not turn the original source into native 4K acquisition.
178° Wide Viewing Angle
With a 178° viewing angle, NEXARA 32 supports medical-image visibility from positions around the screen rather than only from a direct front view.
For a 32-inch medical display, this gives the operator and nearby viewers more flexibility when the same image needs to be seen from different positions.

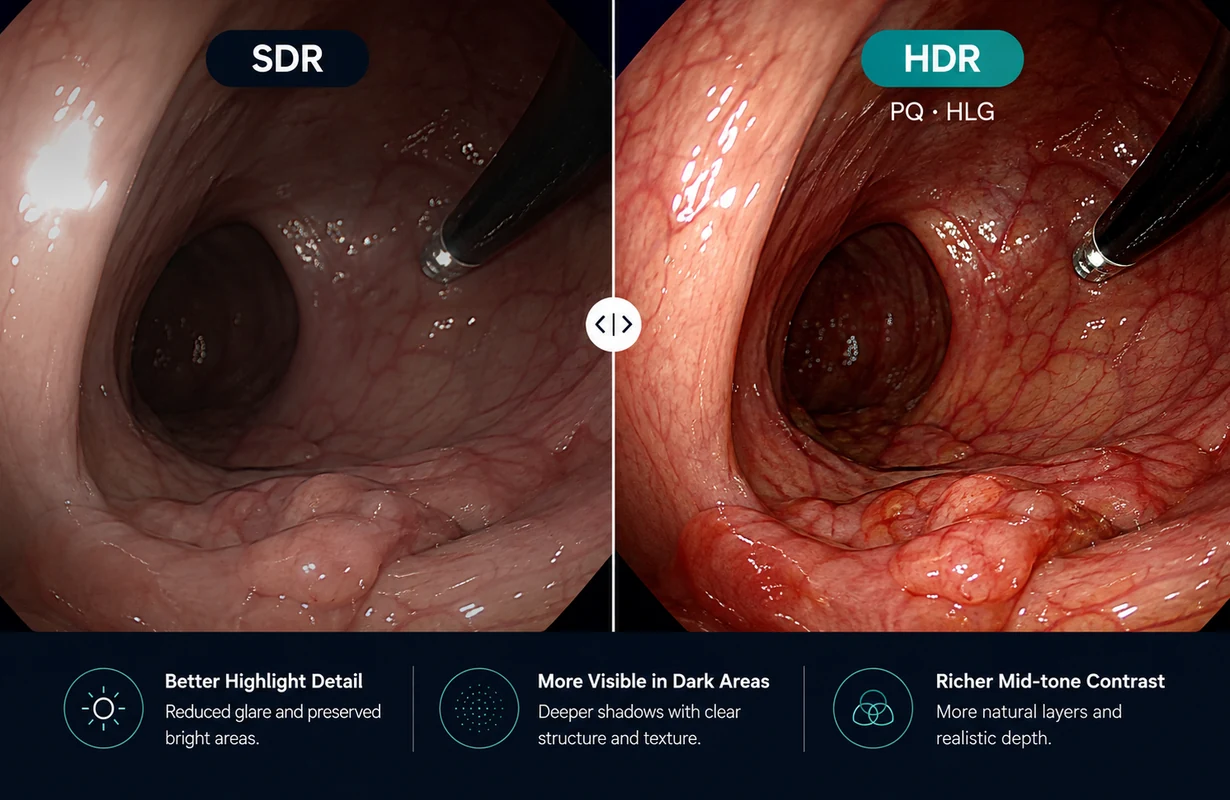

SDR & HDR Configuration for Primary 4K Viewing
NEXARA 32 supports SDR and compatible HDR source workflows through selectable display configurations.
Standard color modes support conventional SDR sources, while HLG and PQ are available for compatible HDR signals. This allows the display configuration to follow the connected video-source format.

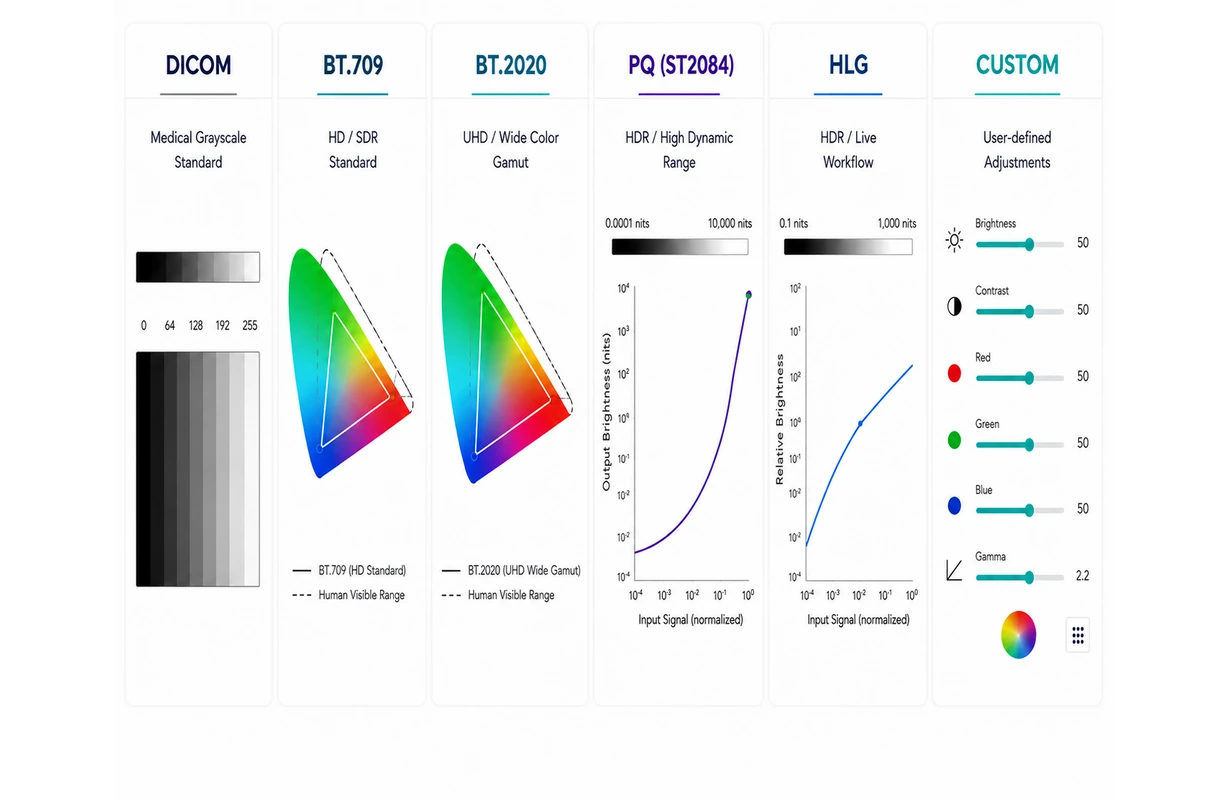

Medical Imaging Modes & Color Management
For source-specific image setup, NEXARA 32 provides selectable medical imaging modes and color-space options for different video sources.
Gamma, color temperature and RGB Gain extend this source-specific image and color configuration.

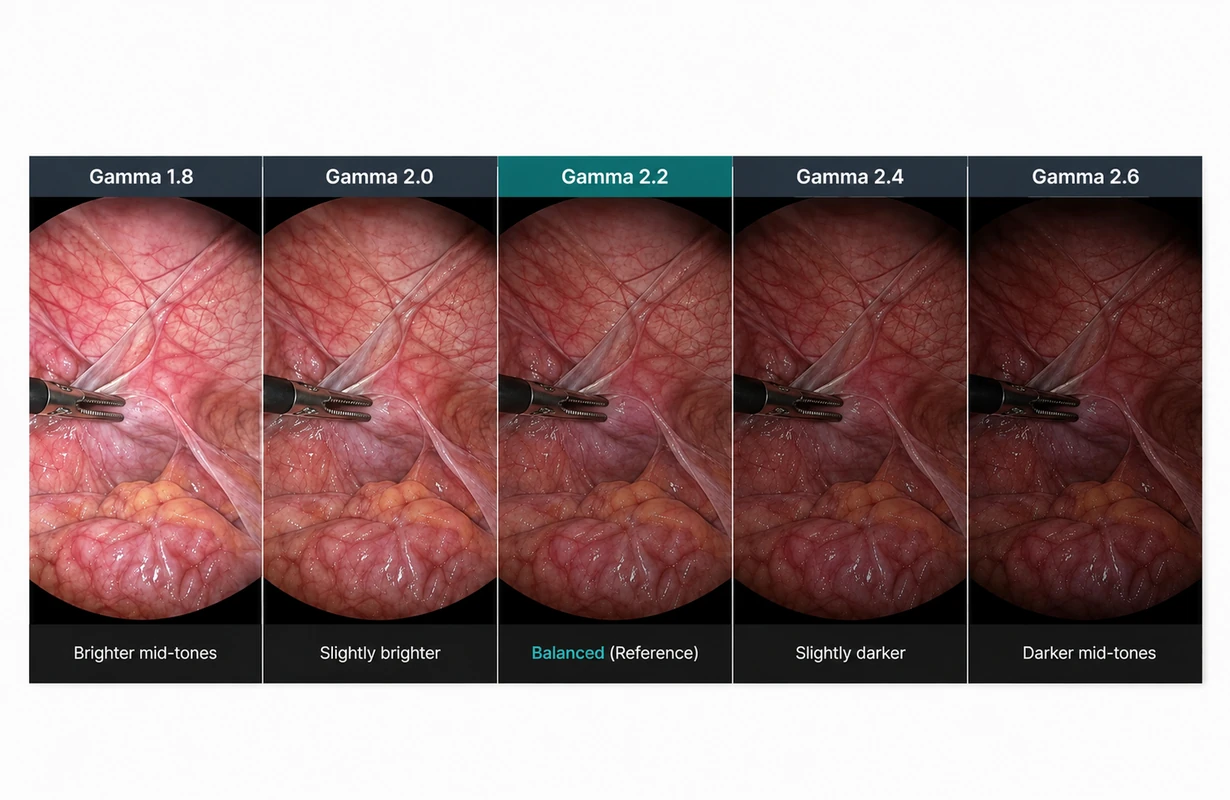

Gamma Adjustment & Tonal Configuration
NEXARA 32 provides Gamma values from 1.8 to 2.6 in 0.1 steps plus Linear for adjustment of image gradation and mid-tone rendering.
The display also supports DICOM, SMPTE ST 2084 (PQ) and ITU-R BT.2100 (HLG) tonal configurations for different medical video and HDR source requirements.
Together with Color Mode, Color Space, Color Temperature and RGB Gain, Gamma forms part of the SOIN U320 family’s broader image-configuration controls.
Multi-View Display with PIP & PBP
NEXARA 32 supports multi-view functions including PIP and PBP for compatible video sources.
A primary medical video source can remain on screen while a secondary compatible source is presented in an inset or side-by-side layout.
This lets the 32-inch display organize more than one compatible signal when the workflow calls for simultaneous viewing on one screen.
Single View
Quad View
Side 3-Split
Bottom 3-Split
PIP
PBP

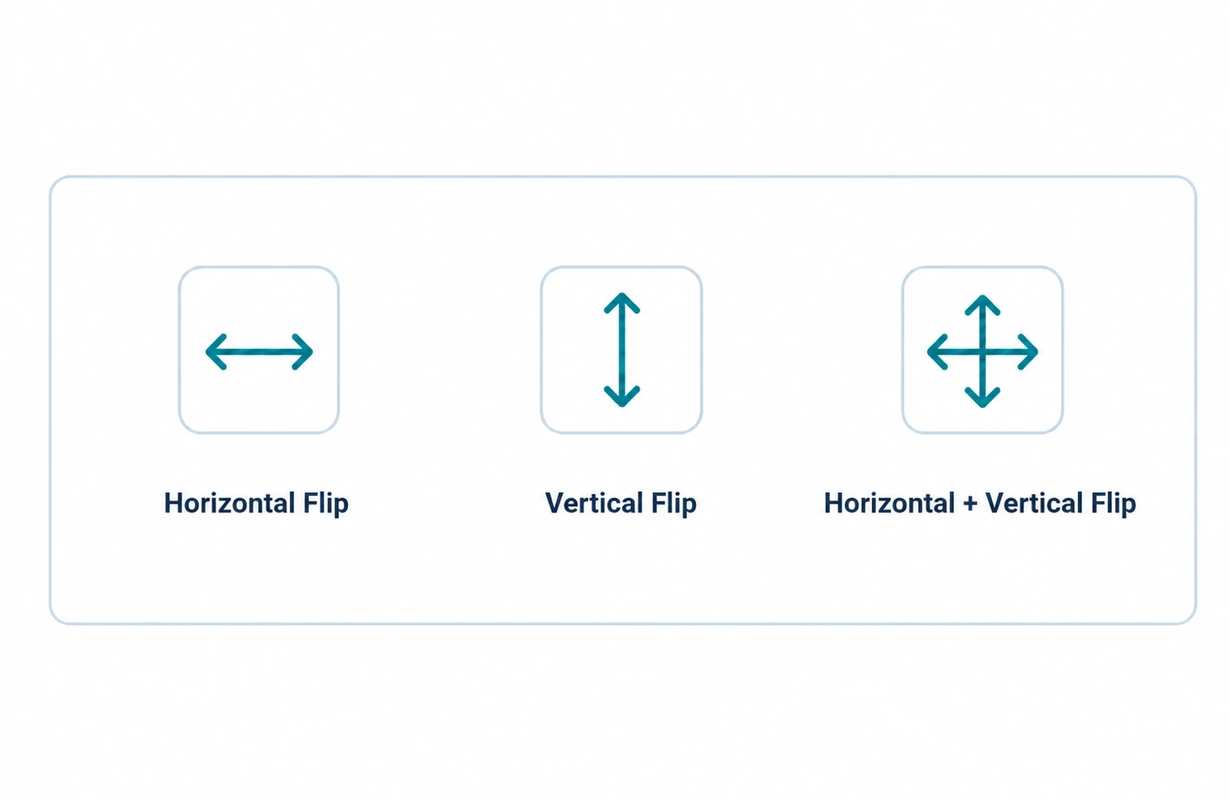

Image Flip & Orientation Control
For orientation control, NEXARA 32 offers horizontal, vertical and combined Image Flip options when the incoming source or equipment arrangement requires a different on-screen direction.
These orientation controls help align the displayed image with the preferred viewing direction without changing the source device.
Other Special Functions

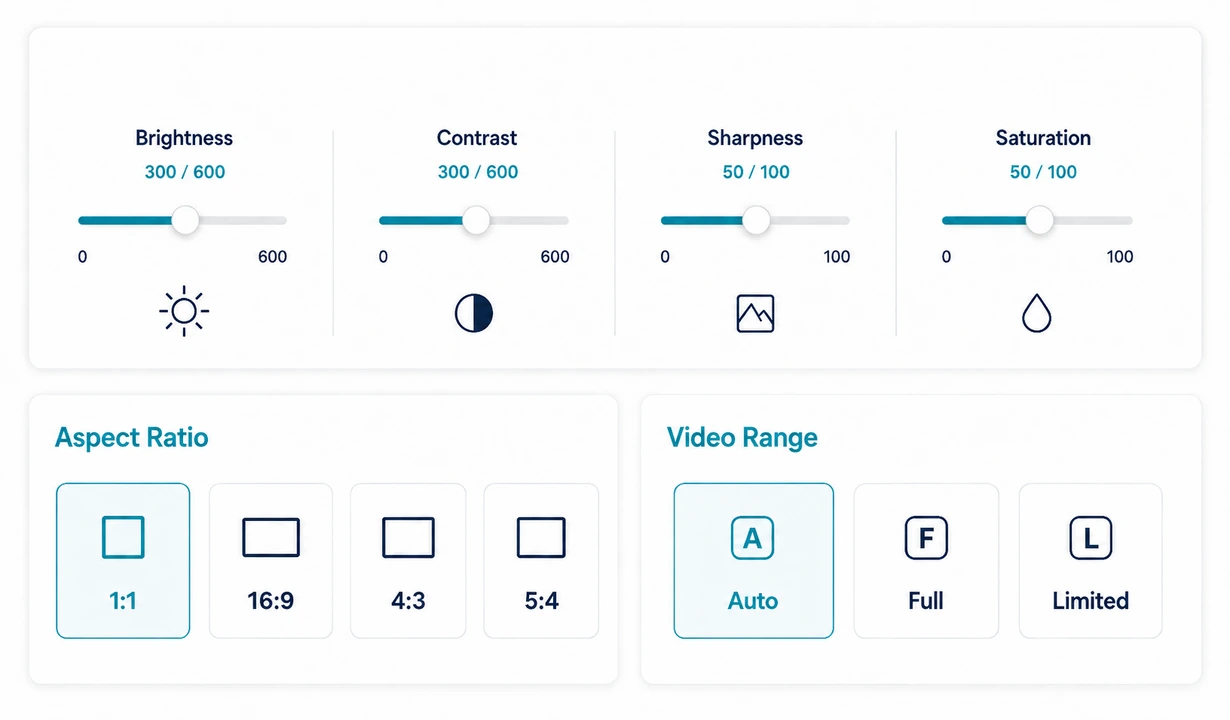

Complete Image Adjustment and Video Setup
NEXARA 32 combines manual image adjustment with source-format controls for medical video setup.
Brightness, contrast, sharpness and saturation can be adjusted directly from the monitor, while 1:1, 16:9, 4:3 and 5:4 aspect ratios allow the on-screen presentation to be matched to different incoming video formats.
Auto, Full and Limited video-range settings provide additional control over how compatible source signals are presented.

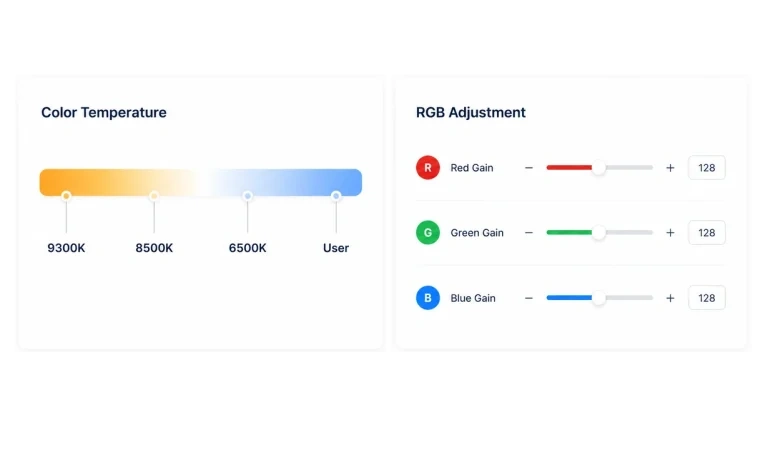

Color Temperature & RGB Gain
NEXARA 32 provides 9300K, 8500K, 6500K and User color-temperature settings.
In User mode, R, G and B gain are independently adjustable from 0 to 600, allowing finer channel-level control over color balance.
Freeze Frame
NEXARA 32 can freeze the current medical video frame directly on the display for static viewing.
The connected source can continue running while the selected frame remains held at the monitor.
NEXARA
NEXARA 32-Inch Rear I/O Configurations
U320SE and U320Pro use the same 32-inch NEXARA display foundation but address different connectivity requirements. Model selection should therefore begin with the video interfaces required by the system rather than the display size itself.

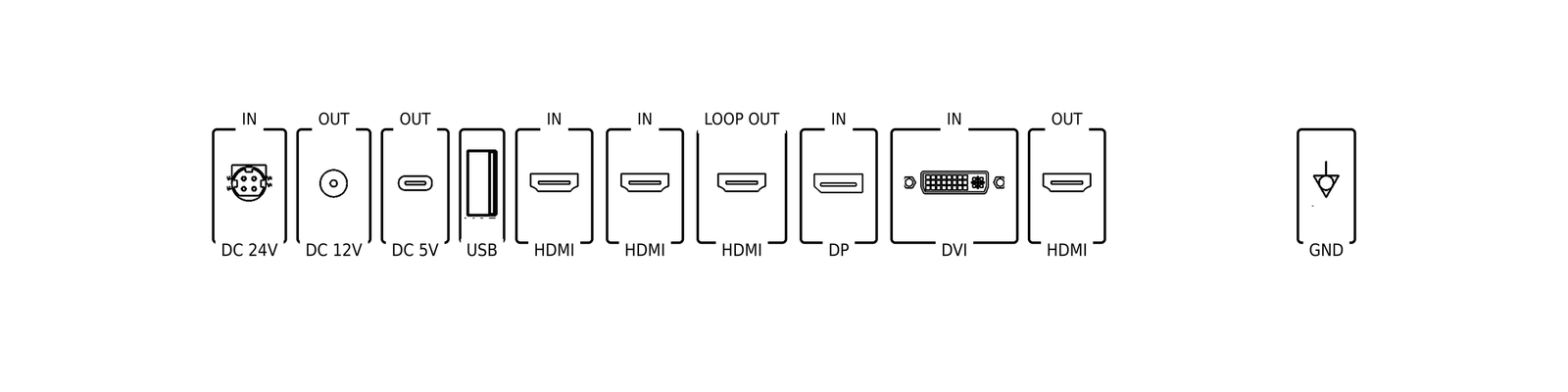

NEXARA U320SE
U320SE is the standard-connectivity option in the U320 family. It supports HDMI, DisplayPort and DVI-based medical video integration and is the more economical choice for systems that do not require SDI connectivity.
Power & Utility
DC 24V input, DC 12V output, DC 5V output, USB and GND connections support routine system integration and accessory requirements.
Video I/O
Supports 2 × HDMI inputs, 1 × DisplayPort input, 1 × DVI input, HDMI loop output, and HDMI output for standard 4K surgical video workflows.
Interface Highlights
- Balanced rear I/O layout for general operating room video integration.
- Suitable for systems without SDI signal requirements.

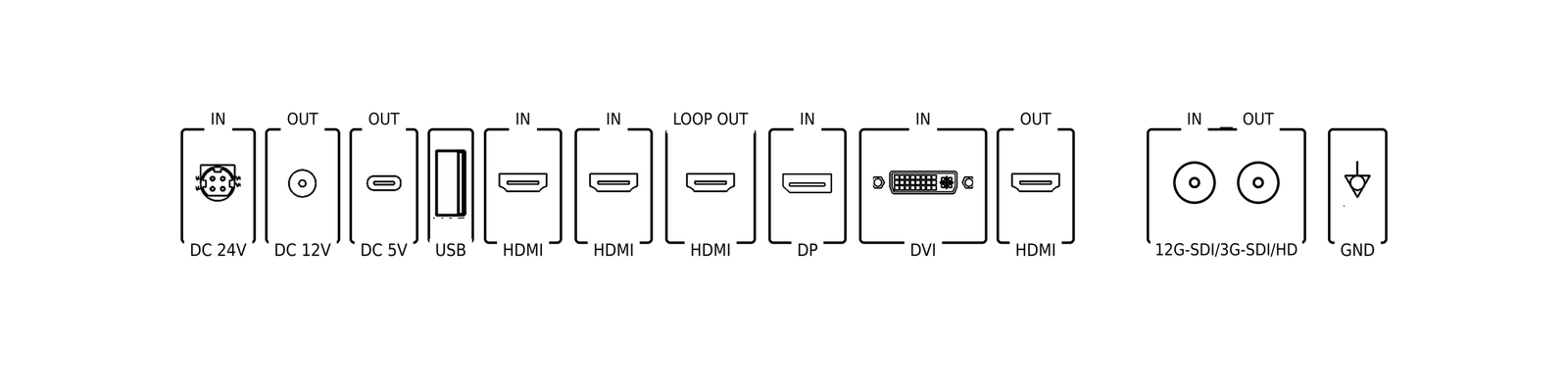

NEXARA U320Pro
U320Pro retains the core U320 connectivity and adds SDI input/output for systems that require an SDI signal path. Choose U320Pro when SDI integration is required; otherwise, U320SE is sufficient for most standard-connectivity applications.
Power & Utility
Core utility ports remain available for power distribution and accessory integration.
Video I/O
Retains HDMI, DP, and DVI connections while adding 12G-SDI input and 12G-SDI loop output for professional SDI-based workflows.
Interface Highlights
- Designed for systems requiring SDI input and signal loop-through.
- Ideal for advanced 4K surgical video chains with expanded connectivity requirements.
TECHNICAL SPECIFICATIONS
SOIN NEXARA 32-Inch 4K Medical Monitor
The specifications below define the shared U320 display platform and the configuration details relevant to system planning, including display characteristics, connectivity, mounting and physical installation.
32"
Screen Size
3840 × 2160
Resolution
IPS LCD
Panel Type
178° / 178°
Viewing Angle
12.5 kg
Net Weight
100 × 100 / 100 × 200 mm
VESA Mounting
* Specifications are subject to change without prior notice.
Display & Panel
Image & Color
Mechanical & Mounting
Power
PRODUCT DOCUMENTATION
Product Documents & Downloads
Review the NEXARA 32 operating guide and U320 model documentation when planning installation, interface selection or procurement.
For project-specific configuration questions, contact SOINVISION for support.
User Manual
NEXARA 32-inch 4K Surgical Monitor
U320SE Product Catalog
U320SE medical LCD display
U320Pro Product Catalog
U320Pro medical LCD display
FAQ
Frequently Asked Questions About SOIN NEXARA 32 and the U320 Family
Answers to common questions about applications, interfaces, system compatibility, and configuration support.
What is the difference between U320SE and U320Pro?
Both models use the same 32-inch NEXARA display platform and share the core video interfaces. U320Pro additionally supports SDI input and output, including 12G-SDI / 3G-SDI / HD IN/OUT. U320SE is the more economical option and is sufficient for most systems that do not require SDI connectivity. Choose U320Pro when SDI integration is required.
Why choose the 32-inch NEXARA as a main viewing display?
The 32-inch format provides more viewing area than the 27-inch model while requiring less installation space than the 43-inch option. This makes NEXARA 32 a balanced choice for systems where the monitor serves as the primary viewing display and both image area and installation flexibility need to be considered.
Can the NEXARA 32 be used with both 4K and Full HD video sources?
Yes. The NEXARA 32 uses a native 3840 × 2160 4K UHD panel and can display compatible native 4K video sources directly. Compatible 1080p / Full HD sources can also be displayed using NEXARA’s 1080p-to-4K image enhancement for presentation on the 4K screen. The enhanced Full HD image is not the same as native 4K acquisition.
How can the NEXARA 32 be mounted in a medical video system?
The 32-inch U320 family supports VESA 100 × 100 mm and 100 × 200 mm mounting patterns. With a weight of 12.5 kg, the monitor can be planned for different installation layouts according to the cart, wall structure and surrounding equipment. Final installation should allow appropriate space for rear connections and cable routing.
When should I choose NEXARA 32 instead of NEXARA X 32?
Choose the standard NEXARA 32 when the project requires the shared NEXARA 4K visualization platform, image controls and standard medical video integration. If the project also requires the additional S-VIXTA enhancement capabilities available in the NEXARA X range, compare NEXARA 32 with the AIU320Pro and AIU320Ultra configurations of NEXARA X 32.
What information should I provide before requesting a U320 quotation?
If you have specific system requirements, you can share the camera or video-source model, output resolution, required interfaces, mounting method or signal-routing needs. This helps SOINVISION confirm whether U320SE already meets the application requirements or whether the additional SDI connectivity of U320Pro is needed.
Find the Right NEXARA 32 Configuration
Choose U320SE for standard connectivity, or U320Pro when SDI input/output is required.
Contact SOINVISION for pricing and configuration support.
